Сервер Dell PowerEdge R760

Dell PowerEdge R760 specifications

Dell PowerEdge R760 specifications

The Dell PowerEdge R760 is a 2U rackmount server that supports two fourth-generation Intel Xeon processors and up to 24 NVMe drives, including bases that support the new EDSFF E3.S SSDs. By the way, SSD E3.S is the only form factor of drives with Gen5 that is supported on this base, U.2 compartments are only Gen4. Support for new drives makes disk subsystem configuration even more important when configuring PowerEdge for specific use cases.

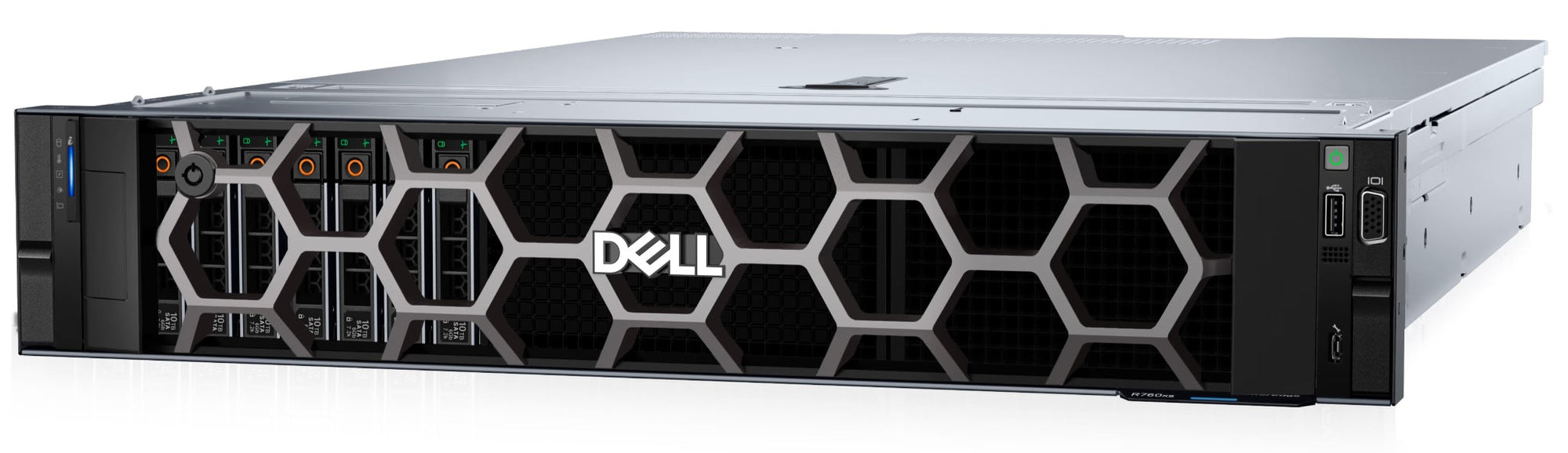

Dell PowerEdge R760 server

- this is, in fact, a 2U version of the Dell PowerEdge R660 1U server we have already reviewed. Both servers support two fourth-generation Intel Xeon "Sapphire Rapids" processors with a maximum configuration of up to 56 cores/128 threads per CPU and up to 8 TB of RAM in 32 DIMM slots. These servers are designed for mixed workloads, databases and VDI.

When it comes to storage, twice the height makes the R760 roomier than the R660; it supports the following configurations (with the possibility of installing up to 24 NVMe drives):

  • 12 x 3.5-in
  • 8 x 2.5-in
  • 16 x 2.5-in
  • 24 x 2.5-in
  • 2 x 2.5-inch or 4 x 2.5-inch (rear)

I should note that the R760 can be configured with direct storage access, as in this review model, or with the new Dell PERC 12 RAID card that supports NVMe HWRAID (up to 16 HWRAID + 8 NVMe direct connections). As mentioned earlier, there are many decisions to be made regarding the disk subsystem when configuring Dell's new PowerEdge core servers.

The R760 also supports more PCIe slots than the PowerEdge R660: four Gen5 and eight Gen4 versus the R660's two Gen5 and three Gen4. The R760 supports dual GPUs (up to 350 watts); The R660 is limited to two single cards up to 75 watts.

Full specifications of the Dell PowerEdge R760 server:

Processor

Up to two Intel Xeon Scalable Gen4 processors with the number of cores up to 56 per processor and with optional Intel QuickAssist technology

Operating system

  • Canonical Ubuntu Server LTS

  • Microsoft Windows Server with Hyper-V

  • Red Hat Enterprise Linux

  • SUSE Linux Enterprise Server

  • VMware ESXi

Chipset

Intel C741

Graphics accelerators

Up to 2 x 350 W DW and up to 6 x 75 W SW

Operating memory

  • Speed: up to 4800 MT/s

  • Memory type: RDIMM

  • Slots for memory modules: 32 DDR5 DIMM slots

  • Maximum amount of RAM: RDIMM 8 TB

Repository

  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max. 216 TB

  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max. 122.88 TB

  • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max. 245.76 TB

  • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max. 368.64 TB

Middle compartment: no

Rear compartment:

  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) maximum 30.72 TB

  • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max. 61.44 TB



Disk controllers (RAID controllers )

  • Internal controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i

  • External controllers: HBA355e

  • Software RAID: S160

  • Internal loading:

    • Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD

    • USB

Safety

  • Built-in software with a cryptographic signature

  • Secure Boot

  • Secure Erase

  • Silicon Root of Trust

  • System Lockdown (iDRAC9 Enterprise or Datacenter required)

  • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

  • Secured Component Verification

  • Data at Rest Encryption (SED with local or external key management)

Administration

Built-in:

  • iDRAC9

  • iDRAC Direct

  • iDRAC RESTful API with Redfish

  • iDRAC Service Module

  • Wireless module Quick Sync 2

Power sources

  • 2800 W Titanium 200—240 VAC or 240 HVDC, hot-swappable backup

  • 2400 W Platinum 100—240 VAC or 240 HVDC, hot-swappable backup

  • 1800 W Titanium 200—240 VAC or 240 HVDC, hot-swappable backup

  • 1400 W Platinum 100—240 VAC or 240 HVDC, hot-swappable backup

  • 1100 W Titanium 100—240 VAC or 240 HVDC, hot-swappable backup

  • 1100 W LVDC -48 — -60 VDC, hot-swappable backup

  • 800 W Platinum 100—240 VAC or 240 HVDC, hot-swappable backup

  • 700 W Titanium 200—240 VAC or 240 HVDC, hot-swappable backup

Ports

Network options

  • 2 x 1GbE LOM cards (optional)

  • 1 x OCP card 3.0 (optional)

Note: The system allows you to install either a LOM card, or an OCP card, or both cards.

Front ports

  • 1 x iDRAC Direct (Micro-AB USB) port

  • 1 x USB 2.0

  • 1 x VGA

Rear ports

  • 1 x dedicated iDRAC Ethernet port

  • 1 x USB 2.0

  • 1 x USB 3.0

  • 1 x Serial (optional)

  • 1 x VGA (optional for configuration with Direct Liquid Cooling)

Built-in ports: 1 x USB 3.0 (optional)

Slots

Up to 8 PCIe slots:

  • Slot 1: 1 x8 Gen5 Full height, Half length

  • Slot 2: 1 x8/1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length

  • Slot 3: 1 x16 Gen5 or 1 x8/1 x16 Gen4 Low profile, Half length

  • Slot 4: 1 x8 Gen4 Full height, Half length

  • Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length

  • Slot 6: 1 x8/1 x16 Gen4 Low Profile, Half length

  • Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length

  • Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length

  • Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length

Video: 1 x VGA

Form factor

2U Rack is a rack server

Dimensions and weight

  • Height: 86.8 mm (3.41 inches)

  • Width: 482 mm (18.97 inches)

  • Depth:

    • 772.13 mm (30.39 in) with bezel

    • 758.29 mm (29.85 in) without bezel

  • Mass: Max. 36.1 kg (79.58 lb)
